- Stock: In Stock!
- Model: 40715-11002473073
- SKU: BMGNUE-140713-11002473073
- OEM: 11002473073
- EAN: 5011987006621
- Location: TR
- OE: 11 00 2 473 073
- MPN: 11002473073

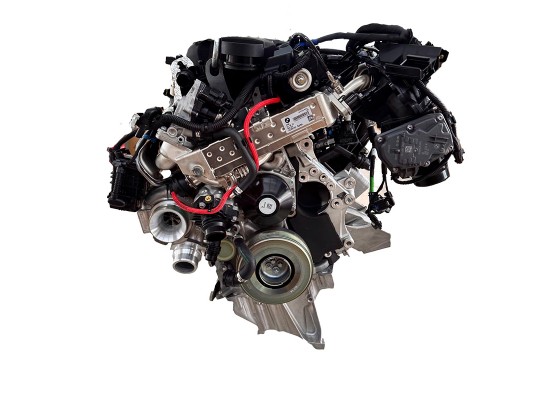

BMW B47 B47D20A Crate Engine New 11002473073
BMW B47 B47D20A Crate Engine New 11002473073. Original BMW F10 , F11, G30, G31, F20, F21, F22, F22, F23, F30, F31, F32, F32, F36 Gran Coupé, X3 F25, G01, X4 F26, G02 models compatible.
Installment options with credit card: 6 - 8 - 10 payments.
OEM NUMBERS
Compatible with OEM numbers: 11002473073 11002361993 11002448625 11002473063.
BMW B47D20A Engine Technical Information
BMW’s B47D20A engine is a member of the B47 engine family and part of BMW’s modular engine series.
B47D20A is a 2.0-liter four-cylinder turbo-diesel focusing on fuel efficiency and performance.
Developed under BMW’s EfficientDynamics philosophy, this engine has been used in many BMW F and G series models.
1. General Specifications
Specification | Value |
---|---|
Engine Code | B47D20A |
Engine Type | Inline 4-cylinder, turbo-diesel |
Displacement | 1995 cc (2.0 liters) |
Valves per Cylinder | 4 |
Valve Train | DOHC (Double Overhead Camshaft) |
Fuel System | Common-Rail Direct Injection |
Turbo | Single, variable-geometry |
Cooling System | Liquid-cooled |
Compression Ratio | 16.5:1 |
Fuel Type | Diesel |
Emission Standard | Euro 6 |
Start-Stop System | Yes |
2. Performance Data
Specification | Value |
Maximum Power | 150 HP (110 kW) @ 4000 rpm |
Maximum Torque | 320 Nm @ 1500–3000 rpm |
0–100 km/h | ~8.4 – 9.0 seconds (varies by vehicle model) |
Top Speed | Up to 210 km/h (varies by vehicle model) |
3. Engine Technologies
TwinPower Turbo: With a variable-geometry turbo, delivers high torque and low fuel consumption.
Common-Rail Direct Injection: High-pressure fuel injection ensures better combustion efficiency and low emissions.
Double Overhead Camshafts (DOHC): More precise valve control for efficiency and performance benefits.
Aluminum Engine Block: Lower weight and improved heat dissipation.
Start-Stop System: Automatically shuts off the engine at stops to reduce fuel use and emissions.
4. Advantages and Disadvantages
Advantages
High torque output provides strong low-rpm pull.
Very low fuel consumption (average 4.5–5.5 L/100 km).
Low emissions (Euro 6 compliant).
Quiet and low-vibration operation.
Disadvantages
Diesel particulate filter (DPF) and EGR valve may cause issues over time due to soot buildup.
Turbocharger and injector failures can be costly at high mileage.
Diesel engines warm up more slowly in cold weather, reducing efficiency on short trips.
5. Applications
The BMW B47D20A engine has been used across a wide range of models. Some examples:
BMW 1 Series
F20 LCI (05/2014 — 06/2019)
F21 LCI (06/2014 — 06/2019)
BMW 2 Series
F22 (08/2013 — 06/2017)
F22 LCI (09/2016 — 12/2019)
F23 (03/2014 — 06/2017)
F23 LCI (09/2016 — 12/2019)
BMW 3 Series
F30 LCI (10/2014 — 10/2018)
F31 LCI (09/2014 — 06/2019)
F34 GT (10/2014 — 06/2016)
F34 GT LCI (10/2015 — 12/2019)
BMW 4 Series
F32 (05/2014 — 02/2017)
F32 LCI (05/2016 — 12/2019)
F33 (10/2014 — 02/2017)
F33 LCI (05/2016 — 12/2019)
F36 Gran Coupé (05/2014 — 02/2017)
F36 Gran Coupé LCI (05/2016 — 12/2019)
BMW 5 Series
F10 LCI (10/2013 — 10/2016)
F11 LCI (10/2013 — 02/2017)
G30 (10/2015 — 12/2019)
G31 (03/2016 — 02/2019)
BMW X Series
X3 F25 (06/2013 — 08/2017)
X3 G01 (09/2016 — 12/2019)
X4 F26 (07/2013 — 03/2018)
X4 G02 (03/2017 — 12/2019)
6. Tuning Potential
B47D20A produces 150 HP and 320 Nm in stock form. With an ECU remap (chip tuning) and an upgraded intake and exhaust, these figures can be increased.
With safe modifications, 180–190 HP and 400+ Nm are achievable.
More aggressive tuning can exceed 200+ HP.
However, DPF and EGR deletions may be harmful to the environment and can lead to legal issues.
Conclusion
BMW B47D20A is a modern diesel engine that delivers low fuel consumption, high torque, and eco-friendly technologies.
Thanks to Common-Rail direct injection, variable-geometry turbo, and TwinPower Turbo, it offers high efficiency and low emissions.
That said, long-term ownership requires attention to turbo and DPF maintenance.
